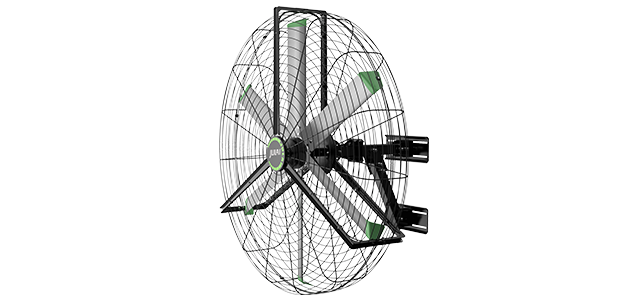

GP SERIES WALL MOUNTED HVLS FAN
Julai GP serials hvls fan is a wall-mounted energy saving fan with PMSM motor, diameter 1.5-2m, which can provide ultra-long air blowing, the effective distance can up to 25m. It’s mainly used in both industrial, commercial and stock farming spaces.Fixed head and movable head can be chose freely.
| Model | Fan diameter | Motor power | Max speed | Rated voltage | Air flow | Wind speed range | Noise |
| HVLS-GP2620 | 2.0m (6.5') | 0.55KW | 250rpm | 220V | 1695 m³/min | 30m | 45dBA |
| HVLS-GP2620Y | 2.0m (6.5') | 0.55KW | 250rpm | 220V | 1695 m³/min | 30m | 45dBA |
| HVLS-GP2615 | 1.5m (4.9') | 0.75KW | 300rpm | 220V | 1505 m³/min | 25m | 45dBA |
| HVLS-GP2615Y | 1.5m (4.9') | 0.75KW | 300rpm | 220V | 1505 m³/min | 25m | 45dBA |
Advantage:
energy saving and low consumption, flexible installation;
large air volume, long-distance air supply;
oscillating head wall-mounted fan, which can rotate 60 degrees left and right for even air supply.
Core Components:
 |

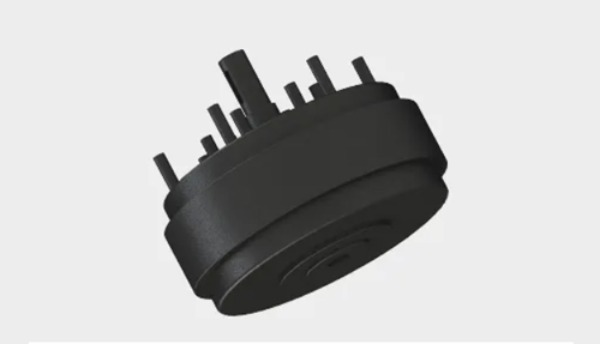

1.Permanent Magnet Direct Drive Motor The PMSM adopts the principle of electromagnetic induction, double-bearing transmission, sealed structure, and military quality. It can realize motor maintenance-free, super quiet, and low energy consumption, as low as 0.3 kilowatt hours per hour. |
|
2.Fan Blades The fan blades are made of rust-resistant 6063T5 aviation magnesium-aluminum alloy material, which has enough toughness to ensure that it will not be brittle. The surface has been painted and has a corrosion resistance of more than 20 years. The fan blades have also been partially mechanically strengthened. , there are three reinforcing ribs, which greatly ensures the safety and strength. |
 |
 |
3.Control System: Our large industrial ceiling fans use "Danfoss" and "Hailip" transducer， the built-in RF interference filter, and the brake chopper has the function of restraining radio interference and braking，and has 12 major functions such as ground fault and over-short circuit protection.The box has a Schneider three-gear switch and an infinitely variable speed knob. |
|

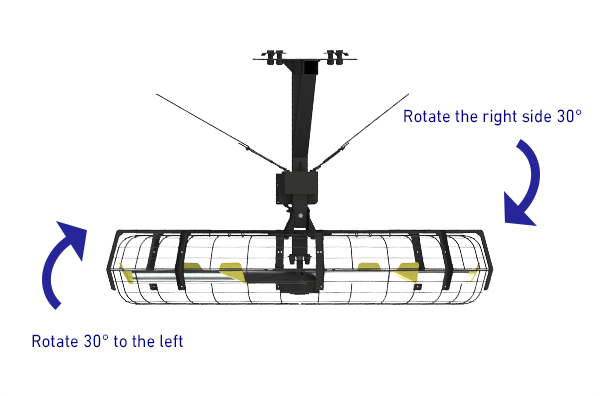

4.Rotation Function The oscillating wall-mounted fan can rotate 60 degrees left and right to deliver even air. Jolai is the first company to independently develop a large wall-mounted fan with a stable and reliable oscillating function. |
 |

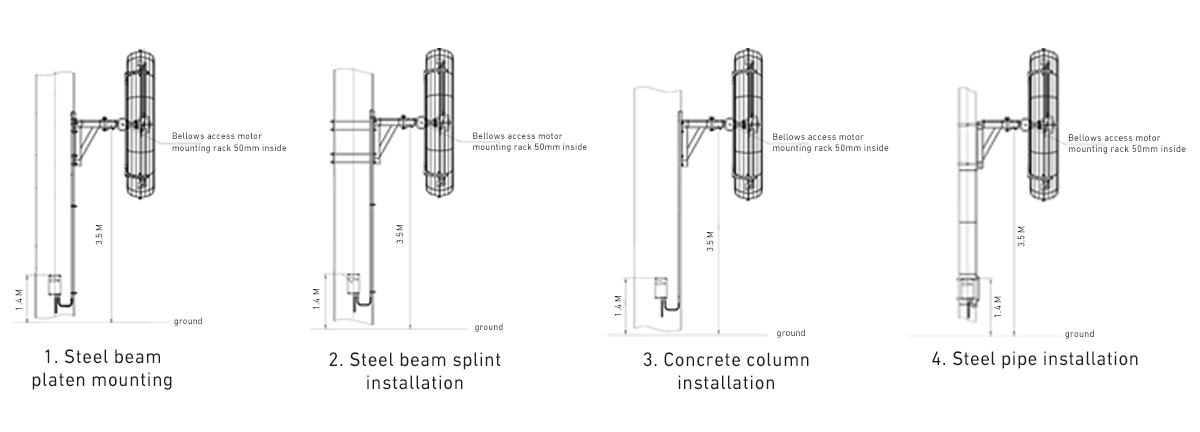

Installation diagram
Our commitment to quality and durability：3 years
Warranty Period for all fan models begins thirty(30) days following shipment of the Product, Customer should retain necessary documentation to verify the date of receipt and installation of the Product. Customer will be required to produce this documentation in order to obtain Warranty services from JvlaiFans. This warranty covers any manufacturing defects that arise from normal usage within the warranty period. JvlaiFans will at its option and without charge, repair or replace the defective components or parts of the product on the condition that customer showing proof the items are within the warranty period.
