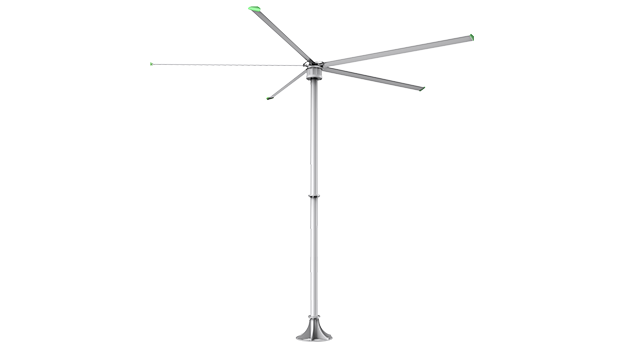

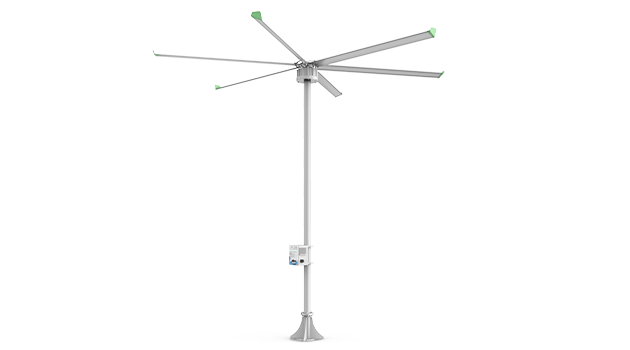

LP Serials stand fan mainly designed for outdoor squares or commercial places like beach,hotel, stadium,amusement park and so on. The unique umbrella shape takes a relax feeling while cooling down the space. Waterproof designed allow it be possible used outdoor.
Parameters:
| Model | Fan diameter | Motor power | Max speed | Rated voltage | Air flow | Max coverage | Noise |
| HVLS-LP1573 | 7.3m (24') | 1.2KW | 57rpm | 220V/380V | 14800 m³/min | 1850m² | 45dBA |
| HVLS-LP1561 | 6.1m (20') | 1.0KW | 65rpm | 220V/380V | 14100 m³/min | 1480m² | 45dBA |
| HVLS-LP1555 | 5.5m (18') | 0.75KW | 75rpm | 220V/380V | 13500 m³/min | 1200m² | 45dBA |
| HVLS-LP1649 | 4.9m (16') | 1.1KW | 76rpm | 220V | 9000 m³/min | 1000㎡ | 45dBA |
 |
1.Permanent Magnet Direct Drive Motor The PMSM adopts the principle of electromagnetic induction, double-bearing transmission, sealed structure, and military quality. It can realize motor maintenance-free, super quiet, and low energy consumption, as low as 0.3 kilowatt hours per hour. |
|
2.Fan Blades The fan blades are made of rust-resistant 6063T5 aviation magnesium-aluminum alloy material, which has enough toughness to ensure that it will not be brittle. The surface has been painted and has a corrosion resistance of more than 20 years. The fan blades have also been partially mechanically strengthened. , there are three reinforcing ribs, which greatly ensures the safety and strength. |
 |
 |
3.Control System: Our large industrial fans use "Danfoss" and "Hailip" transducer， the built-in RF interference filter, and the brake chopper has the function of restraining radio interference and braking，and has 12 major functions such as ground fault and over-short circuit protection.The box has a Schneider three-gear switch and an infinitely variable speed knob. |
|

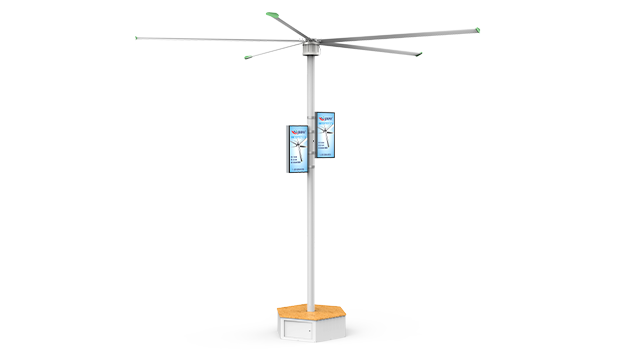

4.Customizable Parts The appearance is a high-value umbrella shape. Billboards, lighting, bar counters, fence seats, etc. can be added according to user needs. The shape is more in line with the environment. Fusion, fashion, luxury and modernity. Whether it is an outdoor plaza or a commercial venue, the rotation of a huge propeller will quickly attract visual attention and ignite popularity. |
 |
Our commitment to quality and durability：3 years
Warranty Period for all fan models begins thirty(30) days following shipment of the Product, Customer should retain necessary documentation to verify the date of receipt and installation of the Product. Customer will be required to produce this documentation in order to obtain Warranty services from JvlaiFans. This warranty covers any manufacturing defects that arise from normal usage within the warranty period. JvlaiFans will at its option and without charge, repair or replace the defective components or parts of the product on the condition that customer showing proof the items are within the warranty period.
