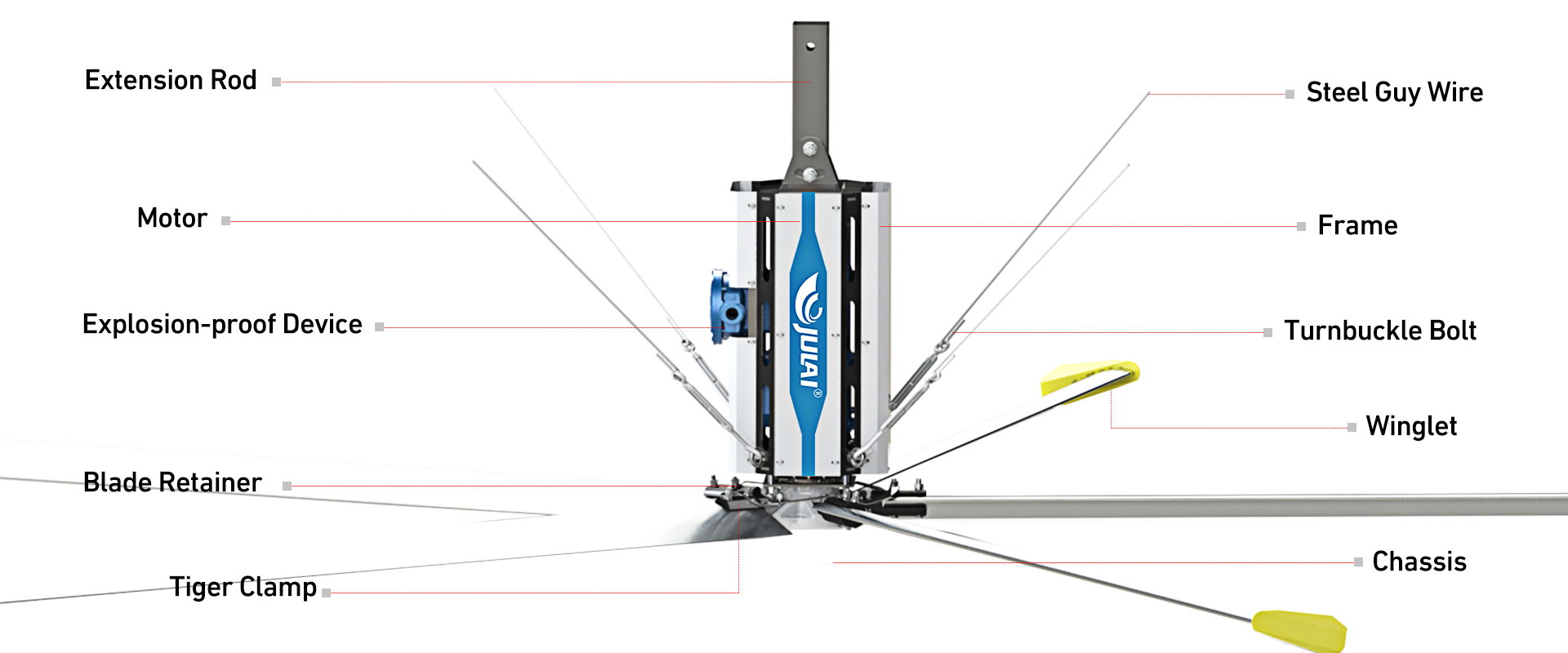

1.Fan Blades

Made of aviation grade magnalium and finished in fluorocarbon coating to withstand the toughest environment. It’s unique patented design structure is further strengthened with 3 vertical stiffeners within the length of each blade to avoid structural fatigue.

2.Winglet

A winglet is attached to a distal end of the aerofoil to reduce drag and improve downward lift, creating up to 40% more air than most of our competitors.

3.Blade Retainer

Durable galvanized mild steel retainer link forms a unison binding strength to secure and lock all the blades to the hybrid hub strut.

4.Steel Guy Wire

4 stabilizing guy wires for minimal lateral movement and vibration. Use turnbuckle to adjust the tension of each wire, ensuring that all cables are evenly stressed and the fan is safely and stably lifted.

5.Tiger Clamp

The enhanced plugin is the connector between the fan blade and the chassis, it is designed to hold 2 times more cross sectional area than most competitions.

6.Chassis

Made of Aluminium Alloy, our drive hub are made by 1500T hot press forging to ensure max mechanical efficiency.

7.Control System

Collaborating with world famous brands, our inverter offer top-class reliability and easy to use operation for peace of mind.

1.Explosion-proof Traditional Motor

The protection level is IP65, with good sealing performance and no sparks or static electricity generated during operation. It is suitable for flammable and explosive industries.

2.Fan Blades

The fan blades are made of rust-resistant 6063T5 aviation magnesium-aluminum alloy material, which has enough toughness to ensure that it will not be brittle. The surface has been painted and has a corrosion resistance of more than 20 years. The fan blades have also been partially mechanically strengthened. , there are three reinforcing ribs, which greatly ensures the safety and strength.

3.Control System:

Our large industrial ceiling fans use "Danfoss" and "Hailip" transducer， the built-in RF interference filter, and the brake chopper has the function of restraining radio interference and braking，and has 12 major functions such as ground fault and over-short circuit protection.The box has a Schneider three-gear switch and an infinitely variable speed knob.

4.Fan Hub

As the main intermediate component that transmits power from the motor to the fan blades, we use 7075 grade aluminum alloy for high-pressure casting. The surface is sandblasted and then painted to slow down the impact of aging and the environment on this part, ensure the safety of the fan during use.

● Tailor-made installation method；

● The installation process is concise and scientific；

● Building structure: H-shaped steel, I-beam, brick-concrete square beam, ball column structure, etc.；

● The safe distance between the fan blades and obstacles shall not be less than 0.3 meters；

● Input power supply can be 380V/220V.
